What Are the Parts of a Dental Implant?
Understanding the parts of a dental implant can help you better understand how the treatment works and the role each component plays.
In general, a conventional dental implant consists of three main parts:
- The implant or implant body, which is placed inside the bone.
- The abutment, which connects the implant to the restoration.
- The dental crown, which is the visible part that replaces the appearance and function of the tooth.
Although these are the most common components of a conventional dental implant, there are different implant designs, systems, and restorations. For this reason, the exact composition can vary depending on each patient's needs.
What Is a Dental Implant?
A dental implant is a device designed to replace the root of a missing tooth.
Unlike a conventional removable denture, an implant is surgically placed into the jawbone. Over time, the bone can integrate with the surface of the implant through a process known as osseointegration.
Once the implant has properly integrated and the treatment allows it, it can be used to support a dental restoration.
It is important to understand that the implant itself is generally not the visible part of the new tooth. The restoration exposed in the mouth is usually a crown, bridge, or denture, depending on the treatment.
The 3 Main Parts of a Dental Implant
1. The Dental Implant or Implant Body
The first component is the implant itself.
It generally has a shape similar to a small screw and is placed inside the upper or lower jawbone through a surgical procedure.
Its main function is to act as a support for the dental restoration.
What Is a Dental Implant Made Of?
Many dental implants are made from titanium or titanium alloys because of their biocompatibility and their established use in implant dentistry.
There are also implant systems made from other materials, such as certain types of ceramic.
The choice of implant system depends on several factors, including the patient's clinical condition and the dental professional's judgment.
Where Is the Implant Placed?
The implant is placed inside the bone in the area where the natural tooth root was previously located.
After placement, a healing process begins during which the bone can establish a functional connection with the implant surface.
This process is known as osseointegration.
What Is the Purpose of the Implant?
The implant provides a stable foundation on which a restoration can be placed.
Depending on the treatment, one or more implants may be used to support:
- A single dental crown.
- A dental bridge.
- A fixed prosthesis.
- An overdenture.
- Other restorations specifically designed for implants.
2. The Abutment
The second important component is the dental abutment.
This component is located between the implant and the restoration.
Its function is to connect the implant, which is inside the bone, to the crown, bridge, or prosthesis located in the mouth.
The abutment may have different designs depending on the type of implant and the restoration being used.
Where Is the Abutment Located?
In a conventional treatment, the abutment is connected to the implant after the implant has properly healed or at another stage determined by the dental professional.
Part of the abutment remains accessible to receive the dental restoration.
Do All Implants Require a Separate Abutment?
Not necessarily.
There are different implant and restoration systems. Some treatments use integrated components or designs in which the connection between the implant and restoration is achieved differently.
For this reason, the exact structure can vary.
3. The Dental Crown
The third component that many people identify as “the implant” is actually the dental crown.
The crown is the visible part that replaces the outer portion of the tooth that you can see in the mouth.
It can be made using different restorative materials depending on the location of the tooth, functional requirements, and aesthetic goals.
Materials used for dental restorations may include different types of ceramic and porcelain, zirconia, and other restorative options.
What Is the Purpose of the Crown?
The crown is designed to:
- Restore the appearance of the tooth.
- Help restore chewing function.
- Maintain an appropriate shape within the dental arch.
- Blend visually with the surrounding teeth.
- Protect and cover the corresponding restorative structure.
The crown is individually designed to fit the characteristics of the patient's mouth.

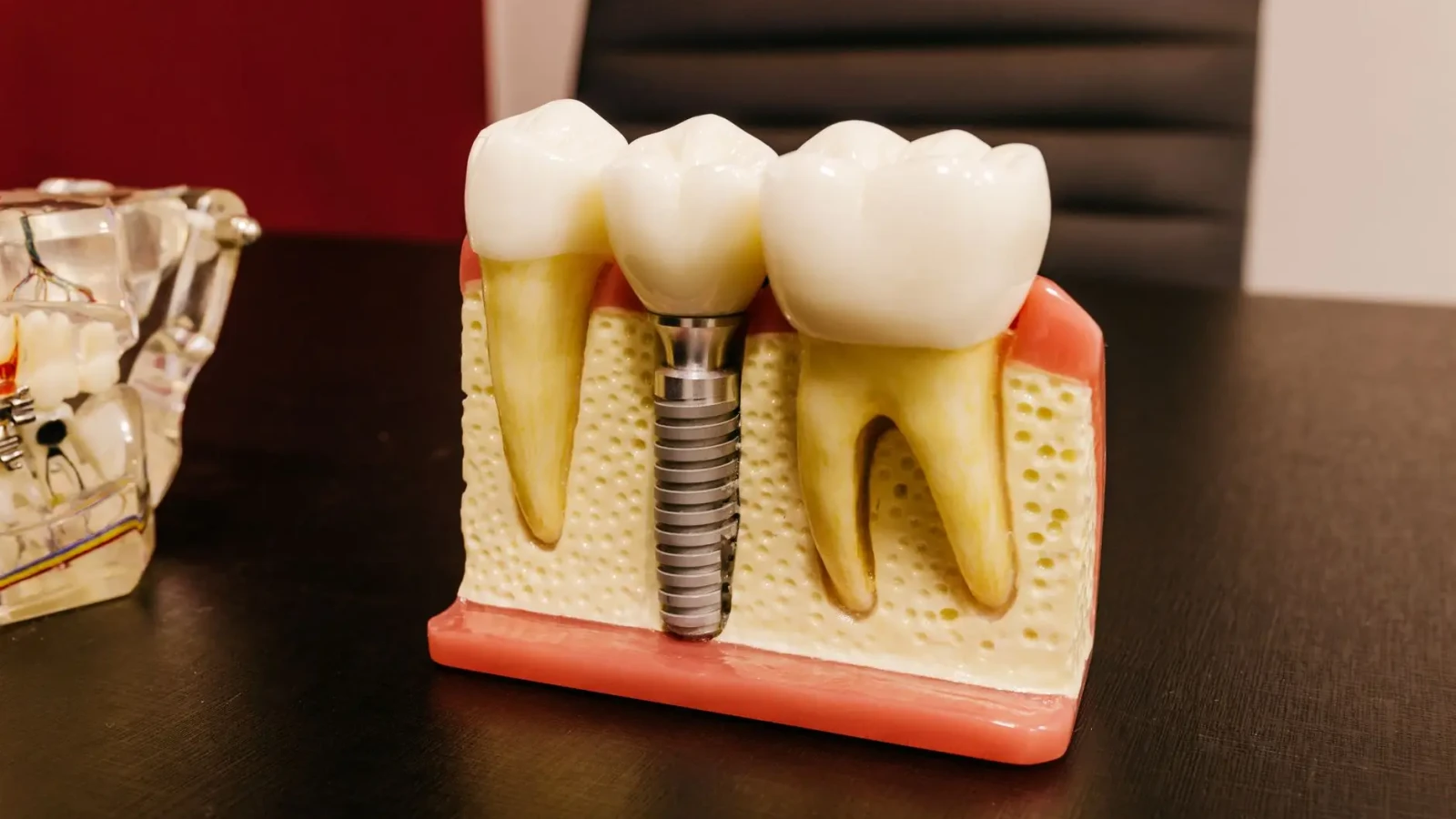

How Are the Three Parts Connected?
A simple way to understand a dental implant is to think of it as a structure made up of several levels:
Bone → Implant → Abutment → Crown
The implant is located inside the bone.
The abutment connects the implant to the restoration.
The crown remains visible in the mouth and serves to replace the outer portion of the tooth.
This structure allows the different components to work together to replace a missing tooth.
What Is the Implant Screw?
In addition to the three main components, you may hear about the implant screw, prosthetic screw, or other screws used in certain implant systems.
It is important not to confuse these components.
The implant body may have a threaded shape that allows it to be placed into the bone. On the other hand, certain systems use screws to connect the abutment or restoration to the implant.
The design depends on the manufacturer and the implant system being used.
What Is the Implant Connection?
There is a connection area between the implant body and the abutment.
This connection allows the different components of the system to be joined together.
There are different connection designs, so not all implants use exactly the same configuration.
The connection must be compatible with the implant system and the restorative components used by the dentist.
What Is Osseointegration?
Osseointegration is one of the most important concepts for understanding how a dental implant works.
After the implant is placed into the bone, the body begins a healing process. Over time, bone tissue can establish a close connection with the surface of the implant.
Proper osseointegration contributes to implant stability.
The amount of time needed for healing and the appropriate time to place the restoration can vary from patient to patient.
Factors such as bone quantity and quality, implant location, overall health, and the procedure performed can influence the process.
Do All Dental Implants Have the Same Parts?
No. Although the concept of an implant, abutment, and restoration is common in conventional implant dentistry, there are different systems and techniques.
The configuration may vary depending on:
- The manufacturer.
- The implant design.
- The location of the tooth.
- The type of restoration.
- The number of teeth being replaced.
- The condition of the bone.
- The patient's needs.
- The dentist's treatment plan.
For this reason, this explanation of dental implant components should be understood as a general overview rather than a representation of every implant system available.
What Happens If There Is Not Enough Bone to Place an Implant?
In some patients, tooth loss may be accompanied by a reduction in bone volume.
This can make it difficult to place an implant in the ideal position.
Depending on the situation, the dentist or specialist may evaluate procedures intended to increase or preserve bone volume, such as certain types of bone grafting.
In the back of the upper jaw, some patients may also require an evaluation involving the maxillary sinus.
Not every patient needs these procedures.
The decision depends on a clinical evaluation and diagnostic imaging, which may include X-rays or three-dimensional imaging such as cone-beam computed tomography, commonly known as CBCT.
How Is a Dental Implant Placed?
Although every treatment is different, the process may involve several stages.
Initial Evaluation
The dentist examines your mouth and determines whether an implant may be an appropriate option.
During this stage, the dental professional may evaluate:
- Gums.
- Neighboring teeth.
- Available bone.
- Bite.
- Oral health.
- Medical history.
- Habits such as smoking.
Treatment Planning
The dental professional determines the potential position, size, and type of implant to be used.
In certain cases, digital imaging is used to plan implant placement.
Implant Placement
The implant is surgically placed into the bone.
The healing process then begins.
Abutment Placement
When conditions are appropriate, the component that will connect the implant to the restoration is placed.
In some cases, the sequence may be different.
Crown Placement
Finally, the restoration that replaces the visible portion of the tooth is placed.
The dentist checks factors such as fit, bite, function, and appearance.
